Extrusion Press accessory equipment

Product Category

Related Cases

Application:

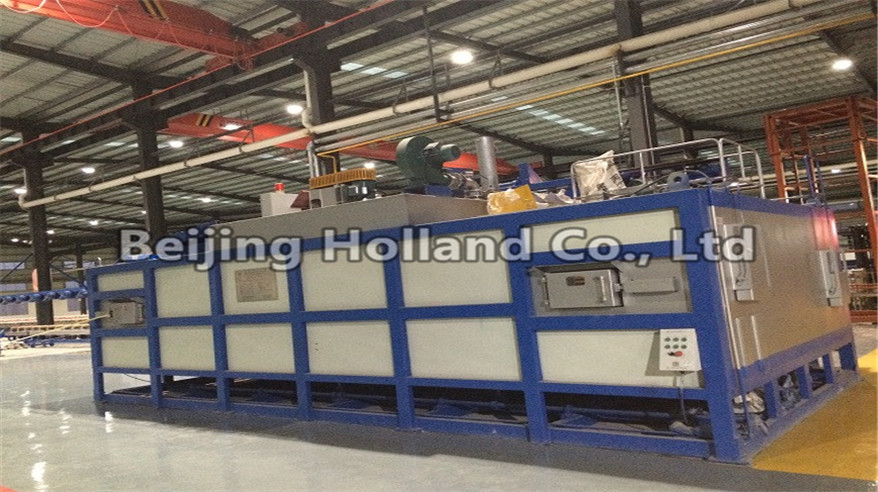

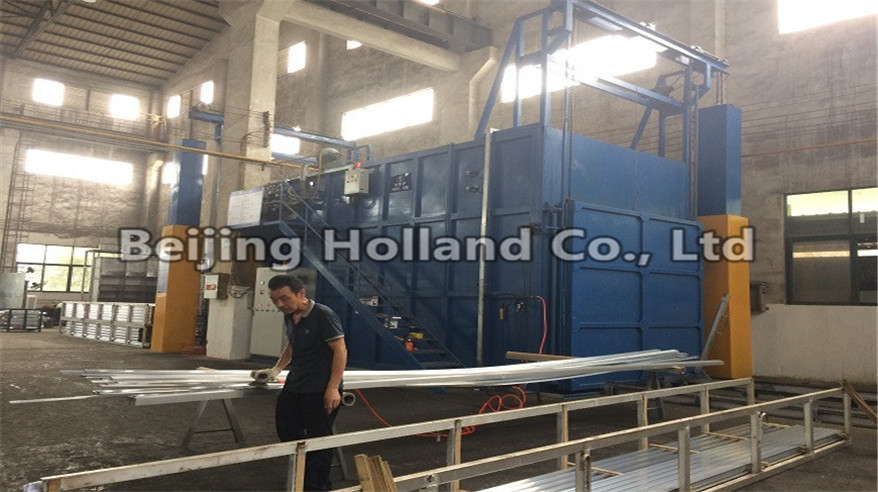

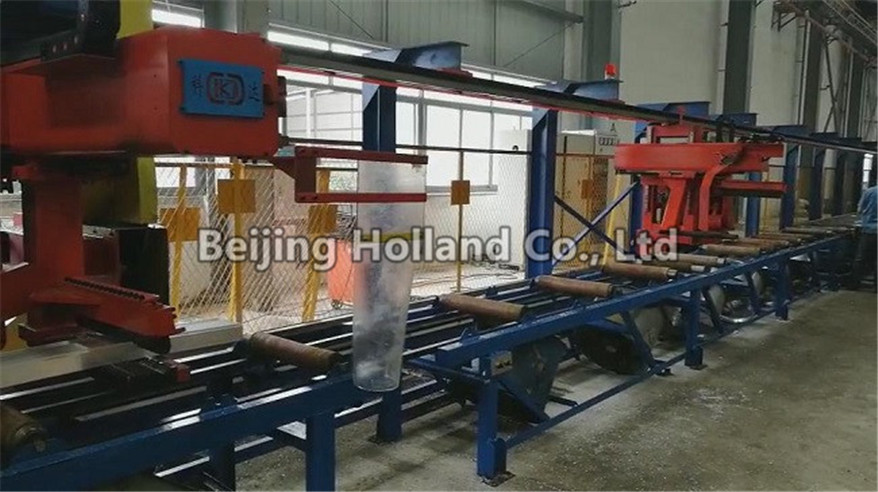

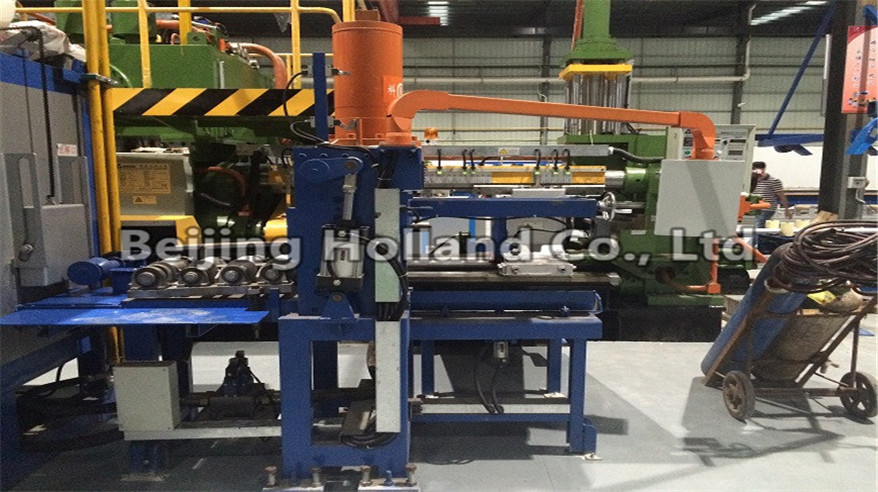

Equipment for handling extruded profiles after press is varied. Generally, our accessory equipment includes die heating furnace, billet furnace, handling table, puller and aging furnace.

Parameter:

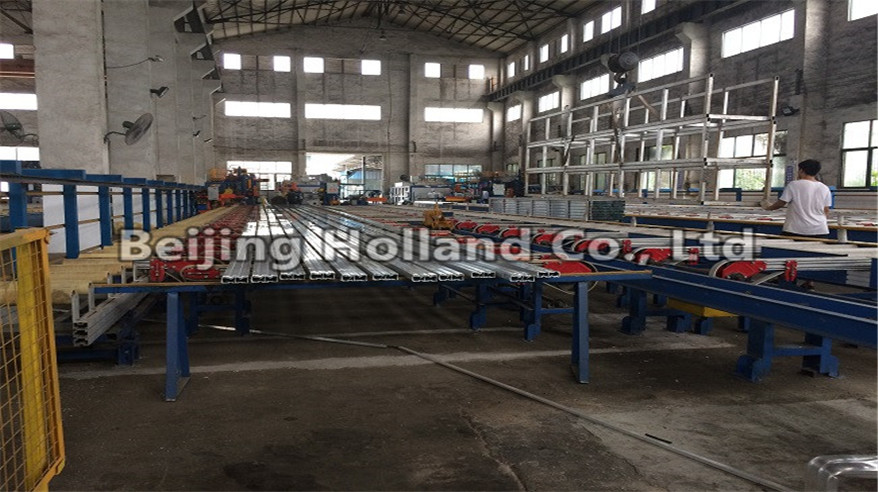

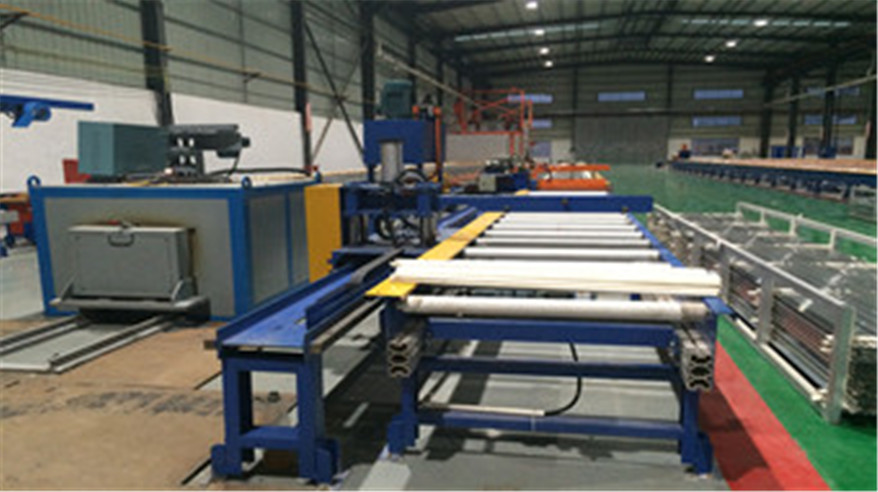

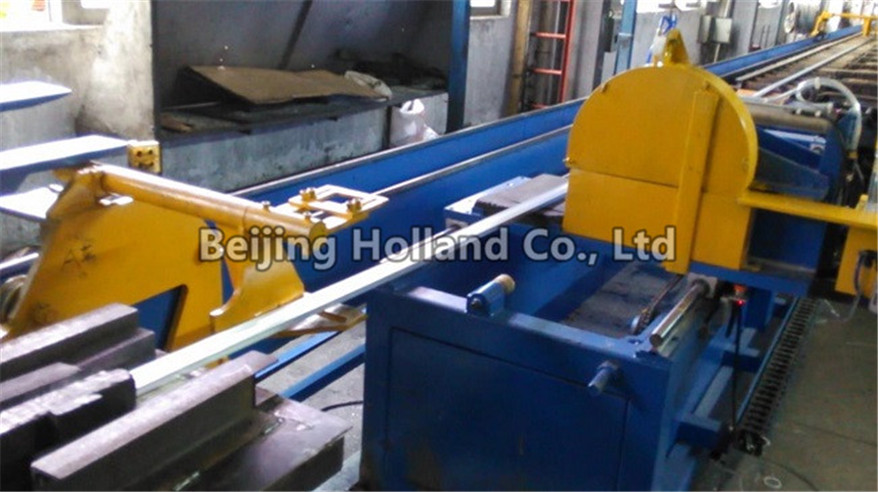

1350T handling table

No Item Parameters
1 Adaptive standard height of handling table 800±20mm(from roller to the floor)
2 The center line of the discharging distance ≤320mm
3 Adaptive run out table length ≥5m
4 Pulling Length (Handing Table) 32m
5 Adaptive height and width of aluminum profile W200*H150mm
6 Synchronize with pull force 10~100kgf
7 Synchronize with pull speed 0~100m/min
8 Rapid return speed 0~400m/min
9 Cutting scrap length ≤200mm
10 Cutting linear velocity ≈4000m/min
11 Cutting push speed ≤300mm/s(Depend on the thickness of profile,adjustable)
12 External connection air pressure 0.5~0.8Mpa,≈1m³/h
13 Power of pull motor 7.5kw*2
14 Power of Vehicle-mounted hydraulic system 1.5kw *2
15 Motor power of cutting saw 4kw
16 Cutting Mist Spray Pneumatic
17 Control System PLC
