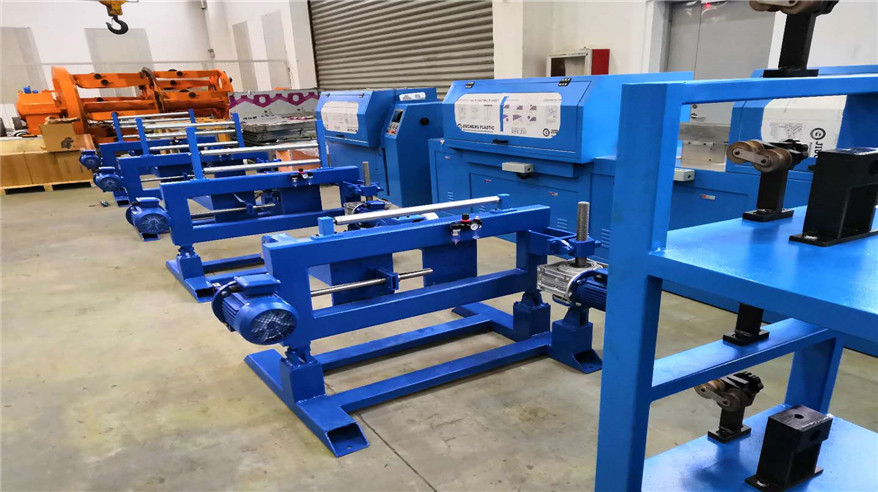

Paper Wrapping machine

Product Category

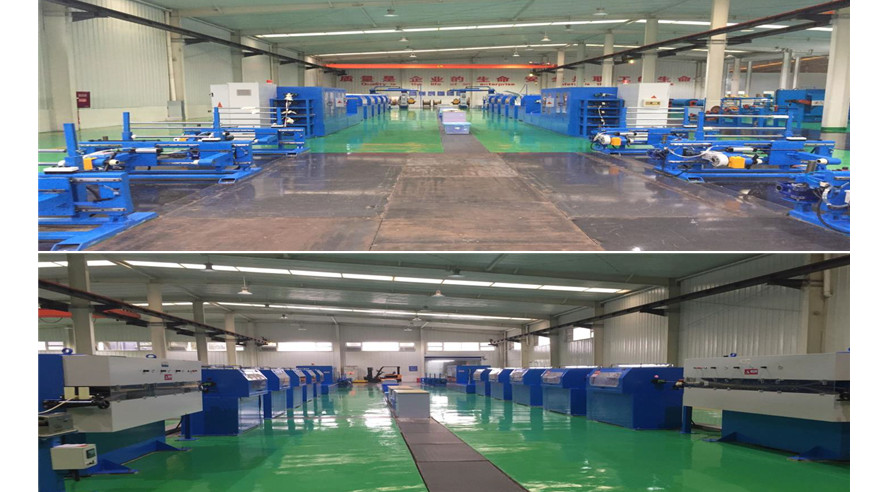

Paper wrapping machine overview:

The paper wrapping machine is special paper-covered equipment for magnet wire production.

Magnet wire needs to wrapped with specific insulation material to have the best electromagnetic response.

We supply all kinds of magnet wire/winding wire wrapping machine includes single wire paper tapping machine, multi wires paper tapping machine, multifunctional horizontal duad head film fiberglass wrapping machine, horizontal film double fiberglass bench machine…etc.



Paper-covered wire features:

 Paper-covered wire is a winding wire made of copper or aluminum wire, enameled wire wrapped by a specific insulating material. Paper-covered wires and combined wires are the main winding wires used in the manufacture of power transformers, reactors, and distribution transformers. The special insulating material includes power cable paper, high-density turn-to-turn insulation paper or heat-resistant insulation paper



Feed wire specification:



No.

Item

Parameter

1

Width

5~20mm

2

Thickness

1 ~16mm

3

Cross-sectional area

10~200 mm2

4

Width thickness ratio

0.4~12

5

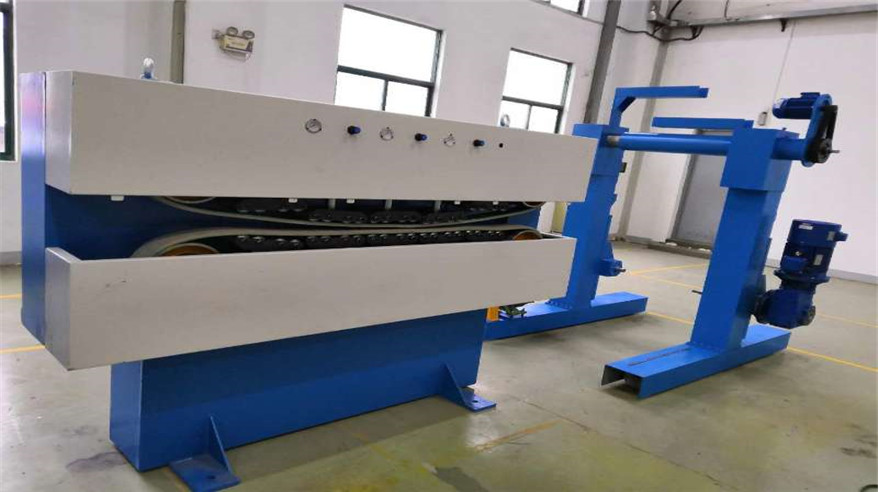

Main machine

Localizer, semi-hard device, single wrapping head, lining paper support device, wrapping head set, pneumatic traction device, portal shaped take up



Paper specification



No.

Item.

Parameter

1

Thickness

0.040~0.125mm

2

Density

800kg/M3

3

Width

10-32mm



Wooden reel specification

1 Pay off wooden reel: Size provided by the customer

2 Take up wooden reel: Size provided by the customer



Wrap:

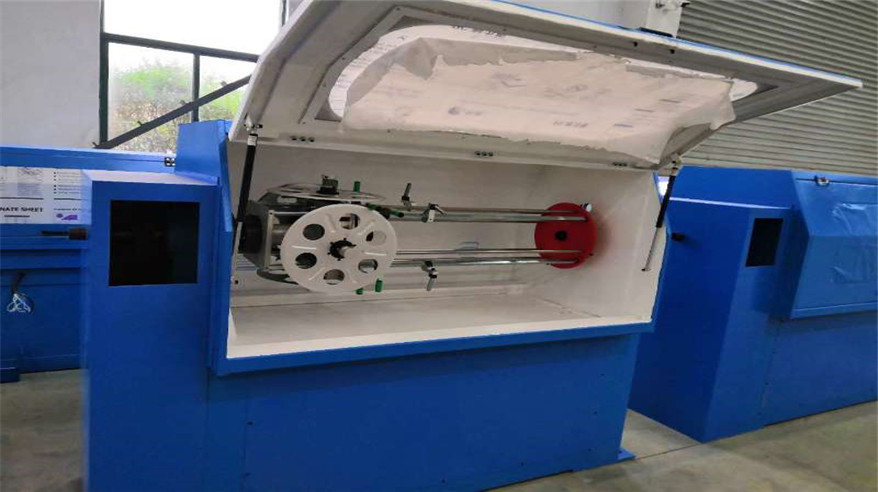

1 Wrapping direction: Single wire wrapping is in single-direction rotation. Wrapping headset can rotate in both directions of clockwise and counterclockwise.

2 Wrapping mode: The overlap wrapping range is in 0%-65% and the error is less than ±0.2mm.
