Overview：
We supply all kinds of fast speed and high reliable drawing machines including breakdown drawing, intermediate drawing, fine drawing and mini drawing.
Machines are able to draw wires from 8mm rod to 0.05mm wires.

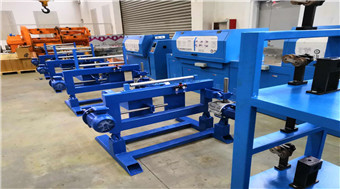

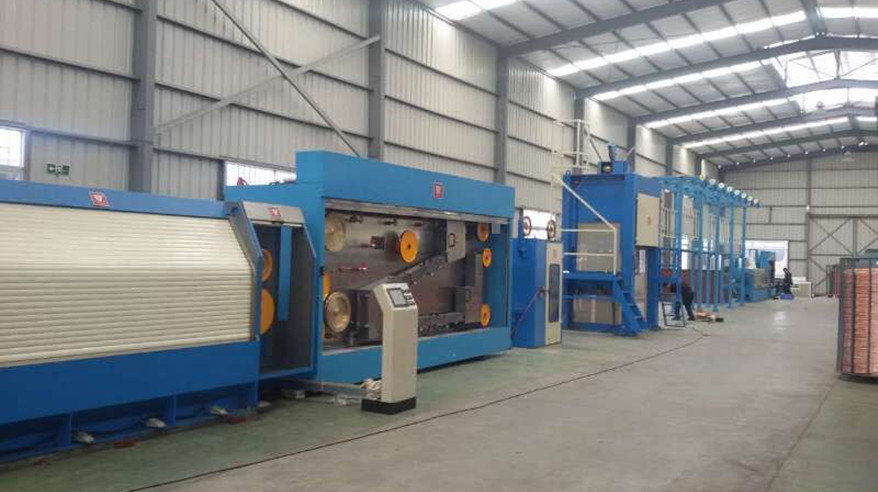

Components of the typical drawing machine
Payoff device

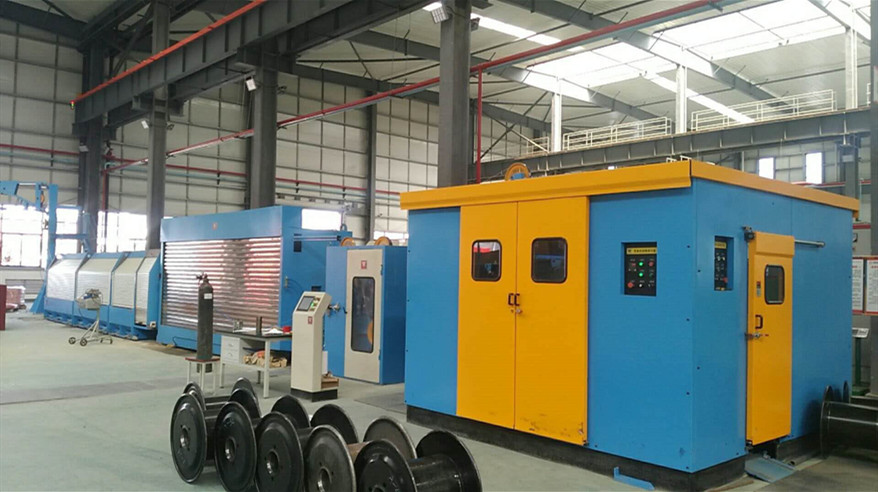

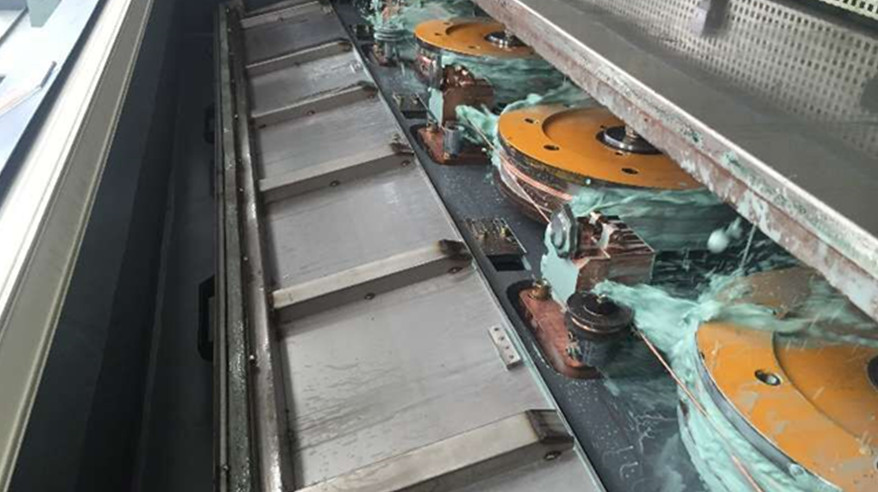

Drawing unit
Operation panel
Electrical control system
Technical parameter
|
Description |
Specification |
|
Max. Inlet |
8.0mm（Low oxygen or oxygen free purple round copper ） |
|
Outlet range |
1.20～4. 2mm |
|
Max. Mechanical speed |
1500 m/min |
|
Max. Number of die |
13 |
|
Outer diameter of suitable die |
Max 50mm |
|
Mechanical elongation |
8%-46% |
|
Drawing cone diameter |
400mm&500mm |
|
Capstan diameter |
400mm |
|
Main motor power for drawing |
AC 200 KW |
|
Motor power for capstan |
AC55KW |
|
Motor power for lubricant pump |
AC 3.0KW |
|
Motor power for rotary die |
AC 0.55KW |
|
Size of pay off stand (L X W X H) |
3130 × 2800 ×4180 mm |
|
Machine size |
9800 × 1800 × 1200 mm |
|
Net weight |
20000 kg |
