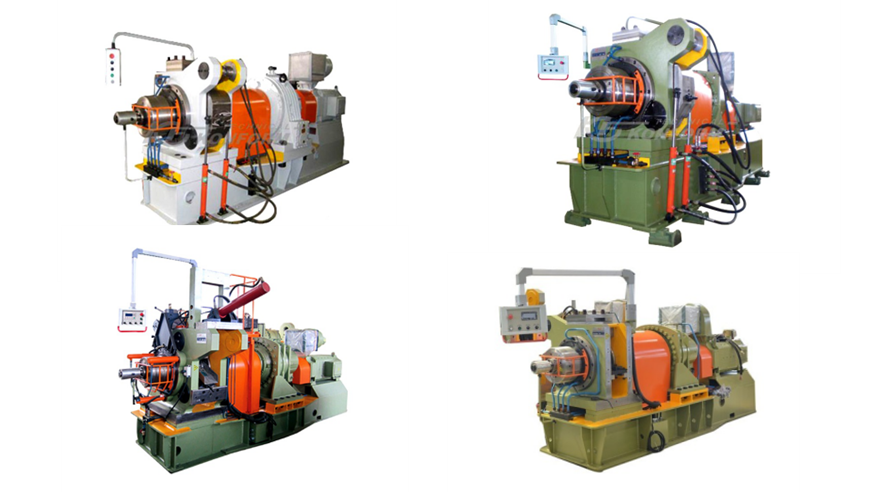

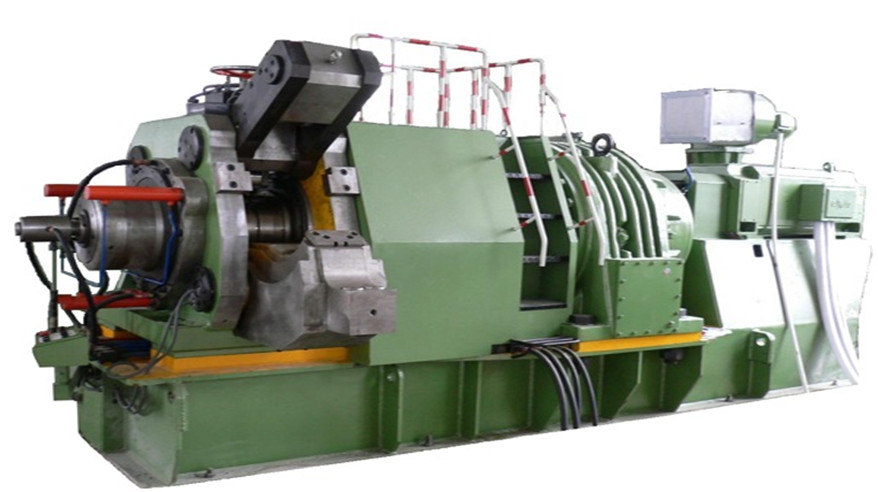

Continuous Extrusion machine

The technology of Continuous Extrusion and Cladding

The feedback is pulled to the groove by the rotating wheels. With huge friction generated, the material is forced to flow through the arc-shaped passage. Under high temperature and pressure, the metal is extruded through the various dies and becomes profiles or tubes.

Application & Advantages

·For the production of the copper flat strip, copper bar, contact, aluminum flat wire, aluminum tube, trolley contact wire, and other solid conductors.

·Feedstock can be pure copper, copper alloy, pure aluminum, aluminum alloy

·Neither heating nor annealing process, less energy cost

·Smooth surface, no peel and small stick defect, high electrical and insulation capability.

·High-quality product resulted by the hot deformation, solid dense and fine crystallization·improve the performance of the product.

·Long lasting compare to other brands

Specifications

Model

TLJ250

TLJ300

TLJ350

TLJ400

Wheel Diameter (mm)

250

300

350

400

Motor Power (KW)

45

90

160

250

Feedstock Diameter (mm)

8.0

12.5

16.0

20.0

Max. Product Width (mm)

14

30

65

170

Product Section Area (mm2)

5–50

10-150

30-400

100-2000

Output Rate (Kg/h)

140

400

760

1400

Scrap Rate (%)

1–3

1–3

1–3

6–9



Continuous extrusion production line for Al Flat wire/bus bar/ profiled conductor

Model LLJ300 LLJ300A LLJ300H LLJ350 LLJ400
wheel diameter Φ300mm Φ300mm Φ300mm Φ350mm Φ400mm
products type flat wire flat wire flat wire sector/profiled conductor sector/profiled conductor
motor power 90KV 90KV 90KV 90KV 90KV
rated rotation speed 0-16rpm 0-20rpm 0-30rpm 0-16rpm 0-20rpm
Al rod diameter 9.5mm 9.5mm 9.5mm 2*9.5mm 20/2*15mm
Max.Width 30mm 30mm 30mm 150mm
Product section area 5-150m㎡ 5-200m㎡ 5-200m㎡ 25-300m㎡ 75-2000m㎡
output 110kg/h 110kg/h 110kg/h 110kg/h 110kg/h



Continuous extrusion production line for aluminum tubes

Model LLJ300 LLJ300H LLJ300B LLJ300BH LLJ350
wheel diameter 300mm 300mm 300mm 300mm 350mm
motor power 110KW 110KW 132KW 132KW 160KW
Al rod diameter 9.5mm 9.5mm 12mm 12mm 2*9.5mm
Al Rround tube diameter 5-20mm 5-20mm 5-20mm 5-20mm 7-50mm
Al multi-void tube width ≤40mm ≤40mm ≤40mm ≤40mm ≤70mm
output 160kg/h 240kg/h 220kg/h 330kg/h 260kg/h
